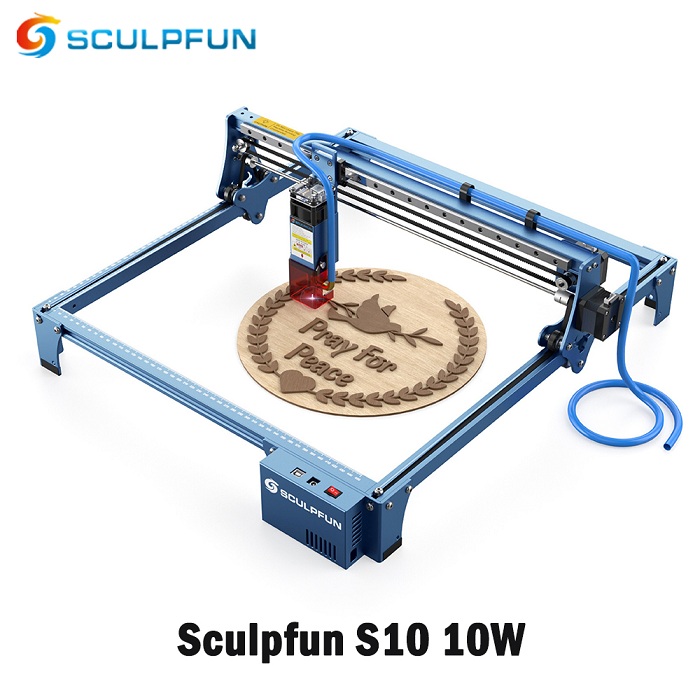

SCULPFUN S10 Laser Engraver Wood Steel Leather Laser Engraving & Cutting Machine

Price:	$599.99
Availability:	In Stock
Order Now:	Free Shipping

Faster, Stronger, Cleaner

First, the cutting efficiency is greatly improved, cut faster; Second, the cutting penetration is stronger, and many high-density woods can be cut; Third, the cutting surface is cleaner, the powerful airflow blows away the residue, so that there is no stain on the surface of the cutting object. Combining advanced high-speed air assist and 10W high density laser,Sculpfun S10 shows comparable to industrial-grade wood cutting performance

More Advanced and Upgradable 32-bit Motherboard

The Sculpfun S10 laser engraver motherboard uses 32-bit chips, with faster computing speed, and it still reserves Z-axis and limit switch functions to facilitate people to upgrade the engraving machine.

Strong Large Parts in One Single Piece

Building large parts up 1500 mm in length in one piece increases part strength, as attachment points always present a weakness in a part. Building the part in one piece also frees additional resources that would be occupied with the assembly of the different segments. Use this feature to build prototype dashboards, middle consoles or stable and light extra-large metal casting patterns. The broad spectrum of resins is developed for 3D Systems Stereolithography printers to generate the consistency and mechanical properties required for each customer application.

Expandable Engraving Area

Sculpfun S10 keeps Y-axis expandable design like Sculpfun S9, the original engraving area is about 410x400mm, but you can buy S10 Y-axis extension kit to expand the engraving area to 410X940mm, which can help you get 230% of the engraving area at a very low price. This can help you better to deal with large-area engraving or cutting work.

Related Information

Diode laser output power: 10W (note this is light energy not electrical energy) Inner diameter of air pipe: 7.5mm (recommended to use 30L/min, 0.03Mpa air compressor, out diameter of nozzle:8mm) Laser wavelength :455±5nm Engraving accuracy: 0.01mm

A Great Laser Machine

Focusing method: fixed focus + sliding device Machine power consumption: about 36W (not related to engraving or cutting performance, just power consumption) Data transfer method: USB connection Power input: 100-240V AC, 50/60HZ Output: 12V 5A

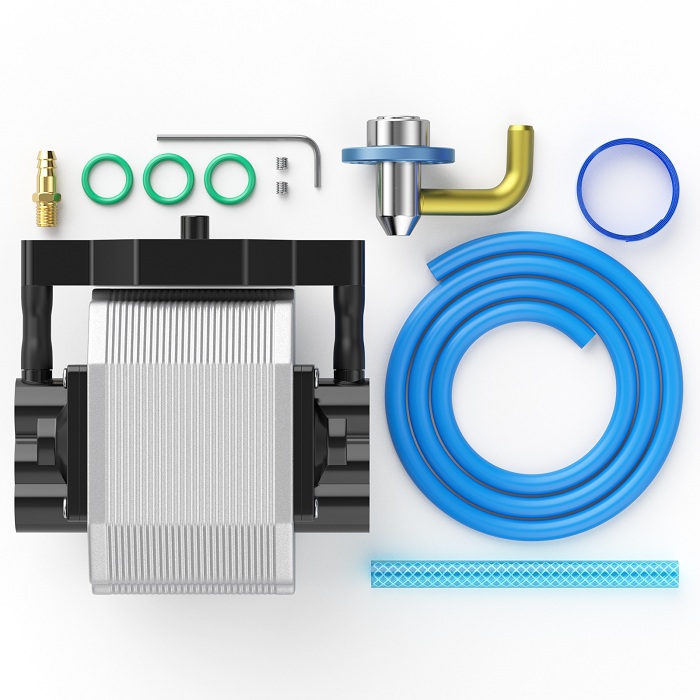

Powerful High-speed Air Assist

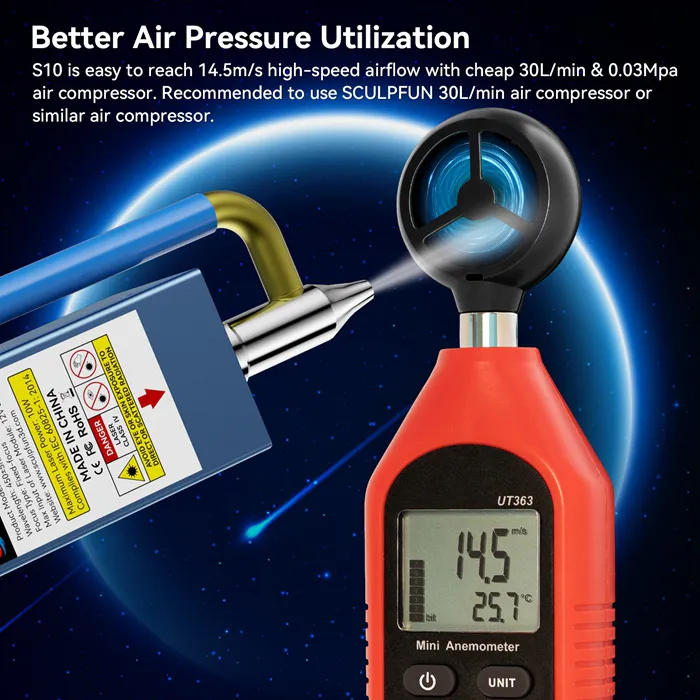

When using the same air compressor, the S10 laser engraver spray airflow faster. For example, when using 30L/min, 0.03Mpa air compressor, the S10 nozzle will spray high-speed airflow up to 14.5m/s. This will greatly improve the cutting penetration and cutting efficiency.

Square Measuring Ruler

X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 400x400mm large-area engraving interval can meet your various engraving needs.

Stronger Cutting Penetration

Cuts More Material It can cleanly cut 10mm thick wood and 15mm thick dark acrylic in a single pass, cut 10mm walnut and 6mm MDF and other high density materials, easily carve ceramics and stainless steel, etc

Adjustable Laser Eye Shield

The Sculpfun S10 module is equipped with a detachable eye shield, which will not dazzle even without glasses. And if you don't need it, you can easily disassemble the eye shield

SCULPFUN S10 Parameter:

Product Model : SCULPFUN S10
Diode laser output power: 10W (note this is light energy not electrical energy)
Inner diameter of air pipe: 7.5mm (recommended to use 30L/min, 0.03Mpa air compressor, out diameter of nozzle:8mm)
Laser wavelength :455±5nm
Engraving accuracy: 0.01mm
Engraving area size: 410*400mm
Focusing method: fixed focus + sliding device
Laser protection cover: Equipped with a detachable laser cover to protect the eyes. You can adjust it up and down, or remove the cover.
Machine power consumption: about 36W (not related to engraving or cutting performance, just power consumption)
Engraving material: all kinds of wood (including walnut, cherry and other high density wood), MDF,bamboo, cardboard, plastic, leather, PCB board, alumina, 304 stainless steel, ceramic, dark stone
Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic, cardboard, bamboo, some plastic boards, leather,PCB boards
Laser software: LaserGRBL, LightBurn, GrblController, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transfer method: USB connection
Power input: 100-240V AC, 50/60HZ Output: 12V 5A
Product weight: 3.42kg
Packing weight: 5.13kg
Packing size: 600*345*130mm
Certification: CE FCC RoHS FDA ICE certification

Comparison of S9 and S10:

	sculpfun s9	sculpfun s10
Diode Output Power	5.5-6W	10W
Engraving accuracy	0.01mm	0.01mm
Engraving size	410*420mm	410x400mm
Focusing Method	Fixed Focus + Sliding Device	Fixed Focus + Sliding Device
Laser Beam	0.08mm	0.08mm
Machine Electricity Power	30W	36W
Expandable Engraving Area	410x950mm	410x940mm
Detachable Laser Eye Shield	Yes	Yes
Air Assist Nozzle	No	Yes
Limit Switch Functions	No	Yes
Engraving Material	wood, paper, cardboard, plastic, white, PCB board, aluminum oxide, black-painted metal/ceramic	Wood, Bamboo, Cardboard, Plastic, Leather, PCB Board, Aluminum Oxide, Non-reflective, Electroplating Layer and Paint Surface Layer Metal, 304 Mirror Stainless Steel, Glass, Ceramics, Cotton Cloth, Slate;
Cutting material	wood, paper, tape, cloth, acrylic, cardboard, fabric, bamboo, plastic board, KT board…	Cardboard, Non-woven Fabric, Wood Board, Acrylic, some plastic boards, Sponge, cardboard, all kinds of wood (including walnut, cherry and other high-density woods), MDF, bamboo, leather, PCB boards

Review List

Highly Recommended.

Chandom

Assembly was very easy, the packaging did a good job of protecting everything and everything came out in perfect condition. There is nothing wrong with the machine, the only problem is that it takes time to learn the light burn software or the lasergrbl software. But there are plenty of tutorials online for the software, and it's not that hard to learn, so far, overall a great laser.

Sally

I am a girl, and I wanted to buy one for fun purely because of my curiosity about the laser engraving machine. So I chose the sculptfun s10 laser engraver.At first, I was worried that I would not be able to assemble it, but my worry was superfluous. The manual helped me complete the assembly very easily. Customer service Tell me to be careful during the installation process, otherwise it will damage the parts that may affect the use. I am learning to operate the software now, and I feel that lightburn is not difficult, and I will start my DIY journey soon.

James Esantan

With my current level of laser engraving, I got what I consider to be good results. There is definitely a learning curve here, and unless you have previous experience with laser engraving, you'll want to do as much research as possible before attempting to use it. This is the only way to ensure the best results from your machine.

KEVIN

It's such a fun machine, the possibilities are almost endless, and I take whatever I have on hand and carve it into something unique. The publisher of Lightburn has some pretty good guides and tutorials, and there's a lot of inspiration about laser engraving on the website. I went from being rusty to proficient at the beginning, and I am very satisfied with it. The machine is easy to understand and looks good. HTPOW customer service patiently answered all my questions

Opaholic

Received the item in 3 days, I am amazed at the speed of delivery. The packaging is perfect, the machine and its parts are not damaged, and the appearance of the machine is very good. I chose sculpfun s10 after careful consideration. At the same price, it is more powerful than other laser engraving machines, Recommend!!!
