With dual beam technology, Longer Ray5 10W has a stronger laser power at 10W, which enables better cutting & engraving capacity. It is able to cut 0.8''/20mm thick wood board and 1.2''/30mm Acrylic.15.8*15.8inch(400*400mm) engraving size. Max 10000mm/min engraving speed.
High Accuracy Cutting & Engraving 0.06*0.06mm2 Laser Spot
Ray5 laser engraver adopts the latest compressed laser technology, which generates an ultra-fine laser spot, two times thinner than ordinary lasers, making Ray5's cutting & engraving work more precise and consistent, with thinner lines, clearer texture, and more delicate and beautiful artwork.
Flame Protection & Alarm
Equipped with a thermal sensor, when Longer Ray5 detects any accidental flame while working, it will automatically stop the laser and generate a continuous buzz alarm. Also, the laser protective cover adopts newly fireproof acrylic with better flame resistance.
3.5" Touch Screen
Offline engraving & cutting supported with 3.5" color touch screen. No computer connection is needed while engraving & cutting, making the operation easier for you to meet various DIY requirements.3.5" Touch Screen is available both on Longer Ray5 5W and 10W.
Multiple Ways for Data Transfer
Wi-Fi, USB cable, APP and TF cards , data can be transferred via different methods, which supports offline operations. You can use Ray5 anywhere, without the limits of physical connection to a computer.
The ProX 950 delivers speed, accuracy and compelling economics

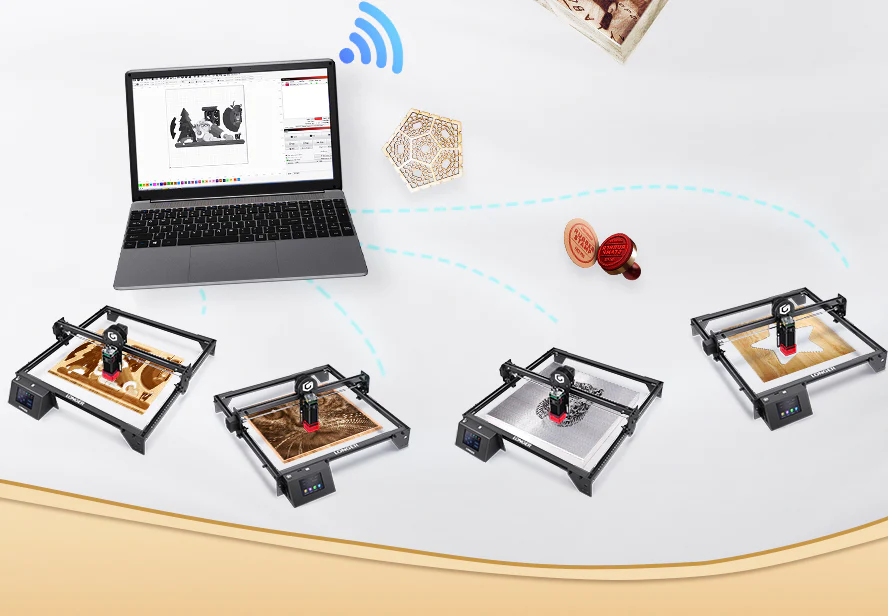

Multiple Machines Control
One computer controls multiple laser engravers. The Ray5 10w can work parallelly with control of only one terminal, you can set a number of units engraving and cutting together and improve the production efficiency.
Engraving up to 1000+ Materials
With 10W laser power and its strong cutting and engraving capacities, Ray5 10W can cut or engrave up to 1000+ materials, such as wood, stainless steel, leather, silver, acrylic, cloth and more...
Stable Engraving
Stable structure design could engrave well when run in max speed.The lines are smooth and clear, and produces less sawtooth.
Wide Software Compatibility
This machine is compatible with various mature carving software, such as LaserGRBL, LightBurn, supports Windows 7+, macOS, Linux; carving file formats Support JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc.
Optimized Focus for Cutting
Cut 20mm wood and 30mm acrylic with optimized focal design, the stronger the light focus, the stronger the cutting ability
32-Bit Chipset
Ray5 is built with an ESP32 chipset, which is running at 240MHz. Faster and more powerful than comparably equipped machines with 8-bit chipset.
Move Protection
There is a G-sensor on the motherboard. When the engraving machine is being accidentally displaced or tilted, it will automatically shutdown for personal safety.
Motionless Protection
The laser will be turned off automatically, when the laser module is freezed over 15 seconds.
