Laser Atomstack A10 Pro Laser Engraving Machine

Official Atomstack A10 Pro Laser Engraver Eye Protection High-Energy Laser Engraving Machine Support Offline Engraving

Brand:

Atomstack

$529.99

Atomstack A10 Pro Laser Engraver Selling Points:
1.Emergency stop button
2.Support offline engraving
3.Upgraded high-performance fixed-focus laser
4.The new filter panoramic glass eye protection design
5.Upgraded dual compression spot coupling technology

Local warehouse delivery, no customs duties.
Delivered within 2-4 Natural Days.

Product Option:

PLUG TYPE

US Plug

Frequently Bought Together (3)

F1 Laser Cutting Thicken Honeycomb Worktable With Fixtures Laser Cutter Honeycomb Bed Working Panel High-strength Steel 380*284*22mm

Price: $119.99

View Addon »

Atomstack Air Assist Kit for Laser Engraver A5 PRO/A5 X7 PRO/S10 PRO/A10 PRO Low Noise and Easily Assembly Removing Smoke and Dust

Price: $89.99

View Addon »

Extension kit for Atomstack A10 Pro/S10 Pro/X7 Pro/A5 M50/A5 M50 Pro Laser Engraver 410*850mm Engraving Enlargement Size

Price: $89.99

View Addon »

Order Now:	Free Shipping
Price:	$529.99
Availability:	In Stock

Qty

ATOMSTACK A10 Pro 50W Features:

The new filter panoramic glass eye protection design: the panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you do not need to wear goggles, you can also watch laser engraving . Reduce the cost of your goggles and the inconvenience of wearing goggles.

Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

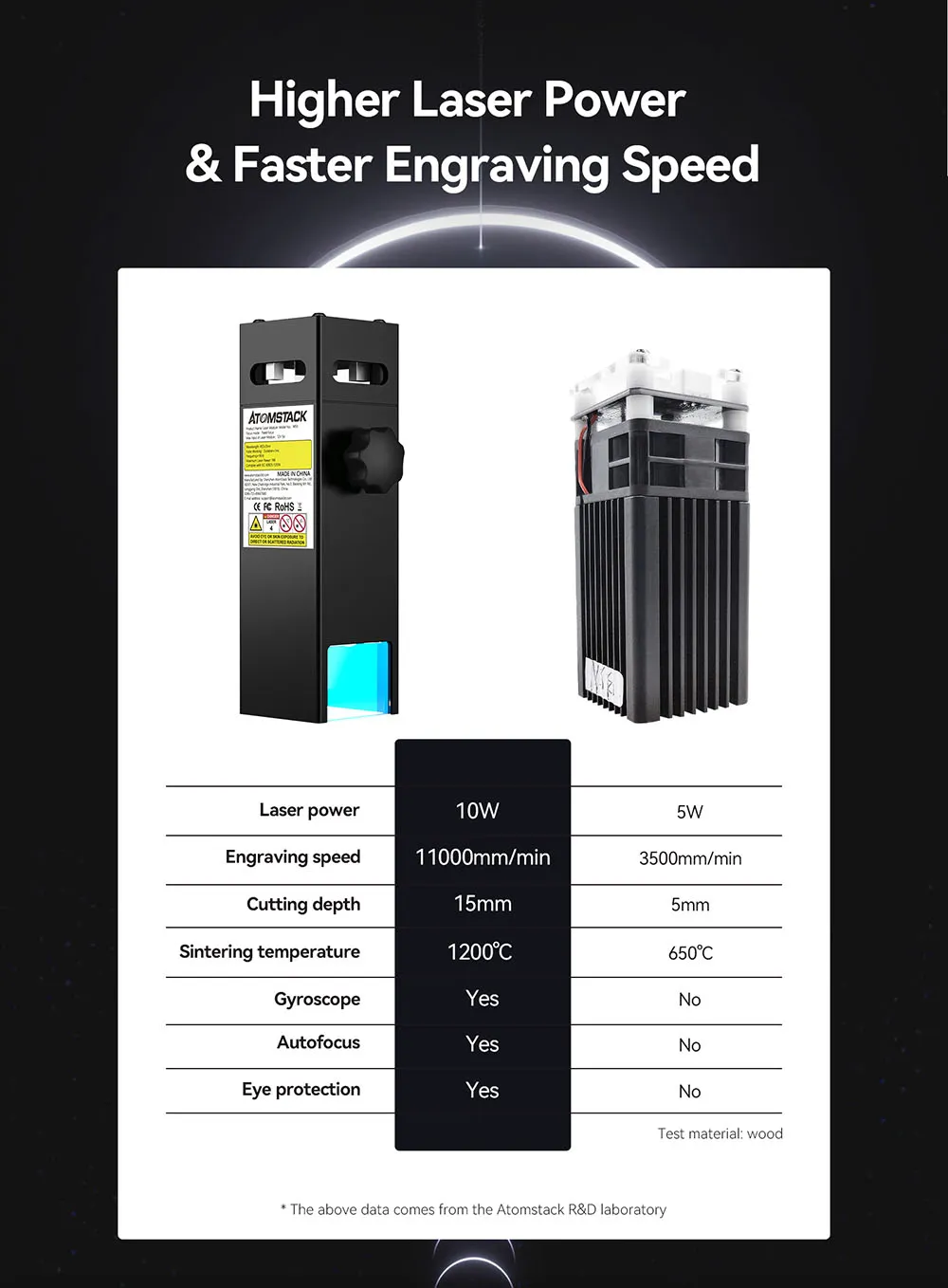

Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

Wide compatibility:The atomstack machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

Upgraded dual compression spot coupling technology: ultra-fine laser focus area is reduced to 0.06*0.06mm, high-density laser can easily cut 20mm thick wood, 15mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO₂ laser engraving machine.

Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

New laser with knob: It is more convenient and quick to adjust the height of the laser.

Support offline engraving: ATOMSTACK A10 50W configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.

The laser sintering temperature is up to 1200℃

Emergency stop button: In the event of an unexpected situation, stop the machine at any time to make the engraving safer

Stopper: Yes

Reset switch: Yes

Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size

A10 PRO Laser Engraving Machine Description:

Item model number: ATOMSTACK A10 PRO

Print Size: Recommend Print Size 410*400mm

Carving Objects:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective

Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;

Cutting Objects:Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;

Laser power: 50W

Laser output power: 10-11W

Wave Length: 445 ± 5nm

Engraving accuracy: 0.01mm

Focusing method: fixed focus laser, no need to focus

Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.

Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.

Input Format: NC, BMP, JPG, PNG, DXF, etc.

Data transmission method: USB connection.

Input Voltage: AC100-240V, 50/60Hz

Output Voltage: DC12V, 5A

Certification: CE FCC RoHS FDA PSE

Atomstack A10 PRO LASER ENGRAVER PACKAGE:

1 × mounting screw	10×Wire tie	1×power adapter	1×cutting pad
1×tool kit	1×desiccant	1×Instruction	1×X axis assembly
4×Foot pad foam	1×brush	1×data line	1×Y axis left profile
1×Film	1×Clean cloth	1×Touch screen components	1×Y axis right profile
3×Acrylic sheet	1×card reader	1×HDMI cable	1×Profile on the base
3 × wood chips	1×TF card	1×laser module	1×Under the base profile
3×foot bracket
