ATOMSTACK S10 PRO Eye Protection Laser Engraver Compressed Spot Engraving Cutting Machine Eye Protection Fixed-Focus

Brand:

$399.99

Atomstack S10 Pro Laser Engraver Selling Points:
1.Integral screw rod, new laser with knob
2.Upgraded high-performance fixed-focus laser
3.Emergency stop button,support offline engraving
4.The new filter panoramic glass eye protection design
5.Upgraded dual compression spot coupling technology

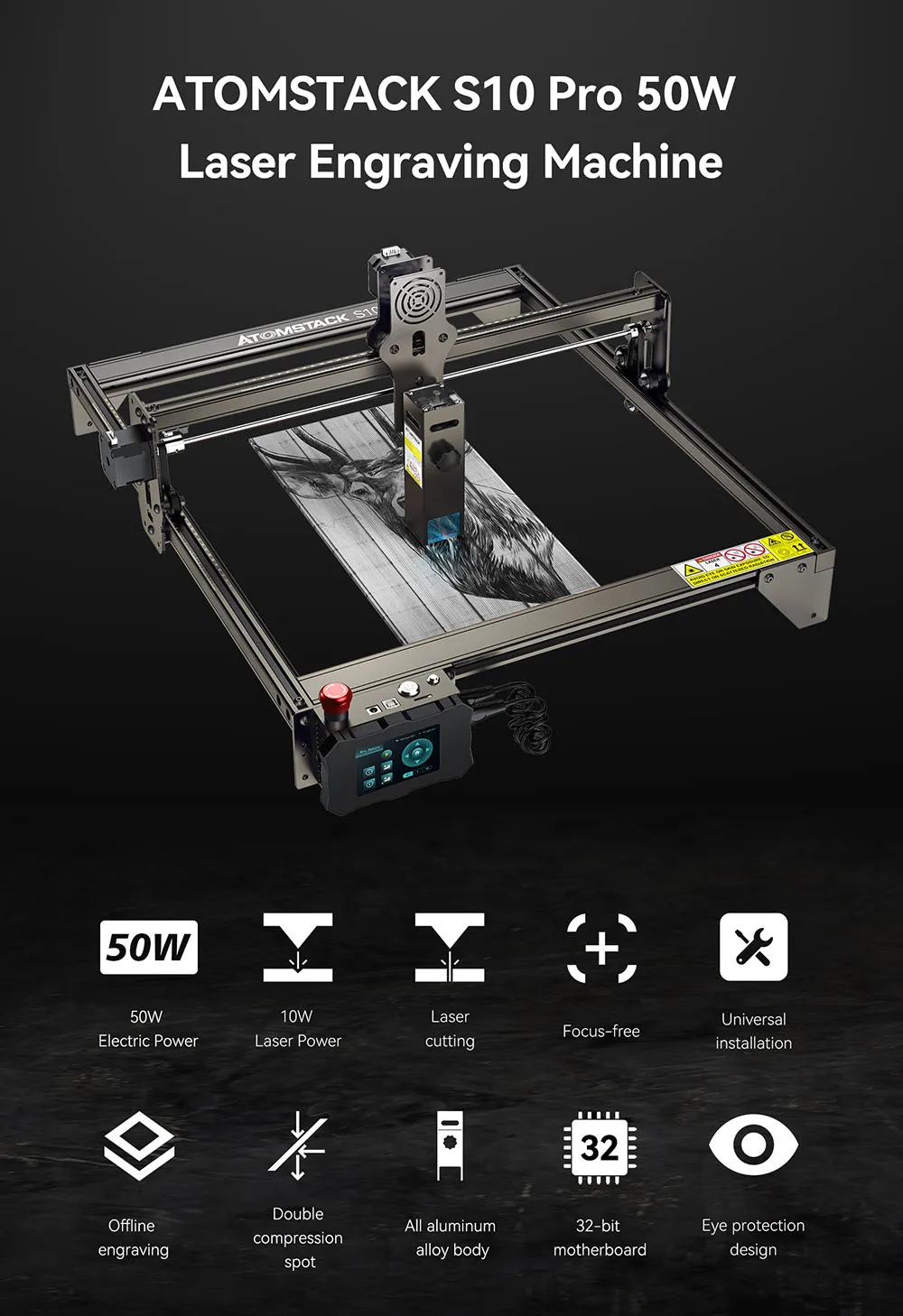

The Atomstack S10 Pro 50W is a very capable laser engraving machine and it has a rectangular engraving area of 410*400mm and it features a very premium control panel with display and quality buttons. It also has an offline controller, so the laser can be operated by its touch screen. The computer is not needed.

Local warehouse delivery, no customs duties.
Delivered within 2-4 Natural Days.

Product Option:
PLUG TYPE
:
Frequently Bought Together (3)
Price: $119.99
Price: $89.99
Price: $89.99
Price: $399.99
Availability: In Stock
Order Now: Free Shipping
Qty
Description

Atomstack S10 Pro 50W Features:

  • The new filter panoramic glass eye protection design: the panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you do not need to wear goggles, you can also watch laser engraving . Reduce the cost of your goggles and the inconvenience of wearing goggles.
  • Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

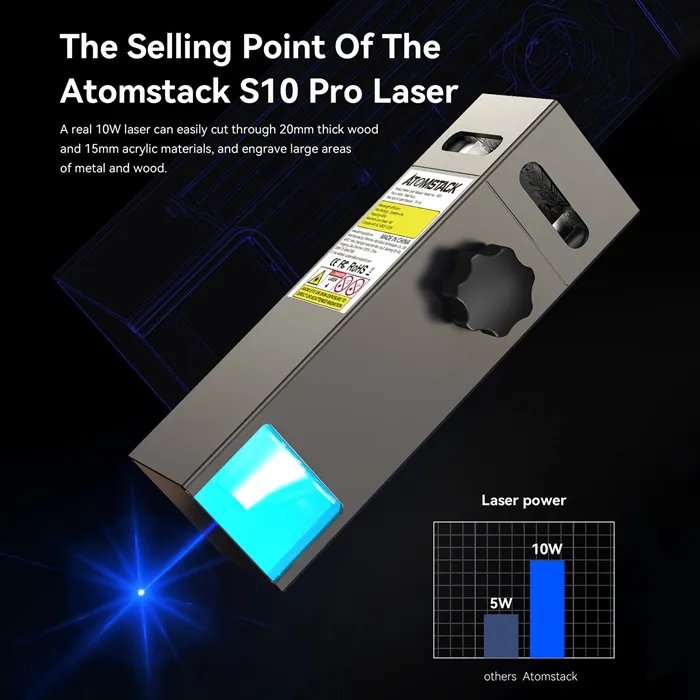

  • Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
  • Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
  • Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.
  • Upgraded dual compression spot coupling technology: ultra-fine laser focus area is reduced to 0.06*0.06mm, high-density laser can easily cut 20mm thick wood, 15mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO₂ laser engraving machine.
  • Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.
  • New laser with knob: It is more convenient and quick to adjust the height of the laser.

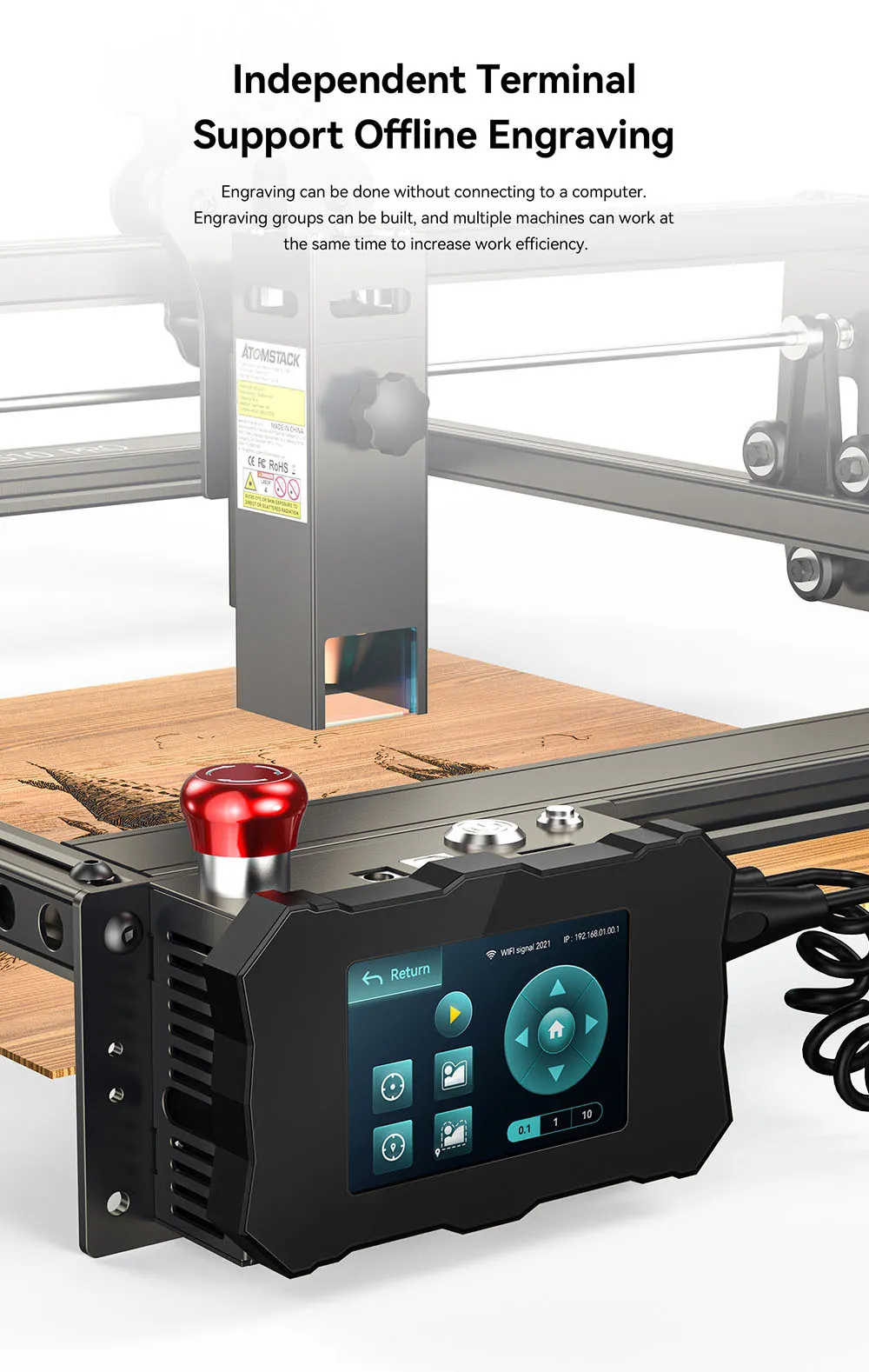

  • Support offline engraving: ATOMSTACK S10 PRO configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.
  • The laser sintering temperature is up to 1200℃
  • Emergency stop button: In the event of an unexpected situation, stop the machine at any time to make the engraving safer
  • Stopper: Yes
  • Reset switch: Yes
  • Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size

ATOMSTACK S10 PRO Product Description:

  • Item model number: ATOMSTACK S10 PRO
  • Print Size: Recommend Print Size 410*400mm
  • Carving Objects:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective
  • Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
  • Cutting Objects:Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
  • Laser power: 50W
  • Laser output power: 10-11W
  • Wave Length: 445 ± 5nm
  • Engraving accuracy: 0.01mm
  • Focusing method: fixed focus laser, no need to focus
  • Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
  • Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
  • Input Format: NC, BMP, JPG, PNG, DXF, etc.
  • Data transmission method: USB connection.
  • Input Voltage: AC100-240V, 50/60Hz
  • Output Voltage: DC12V, 5A
  • Certification: CE FCC RoHS FDA PSE

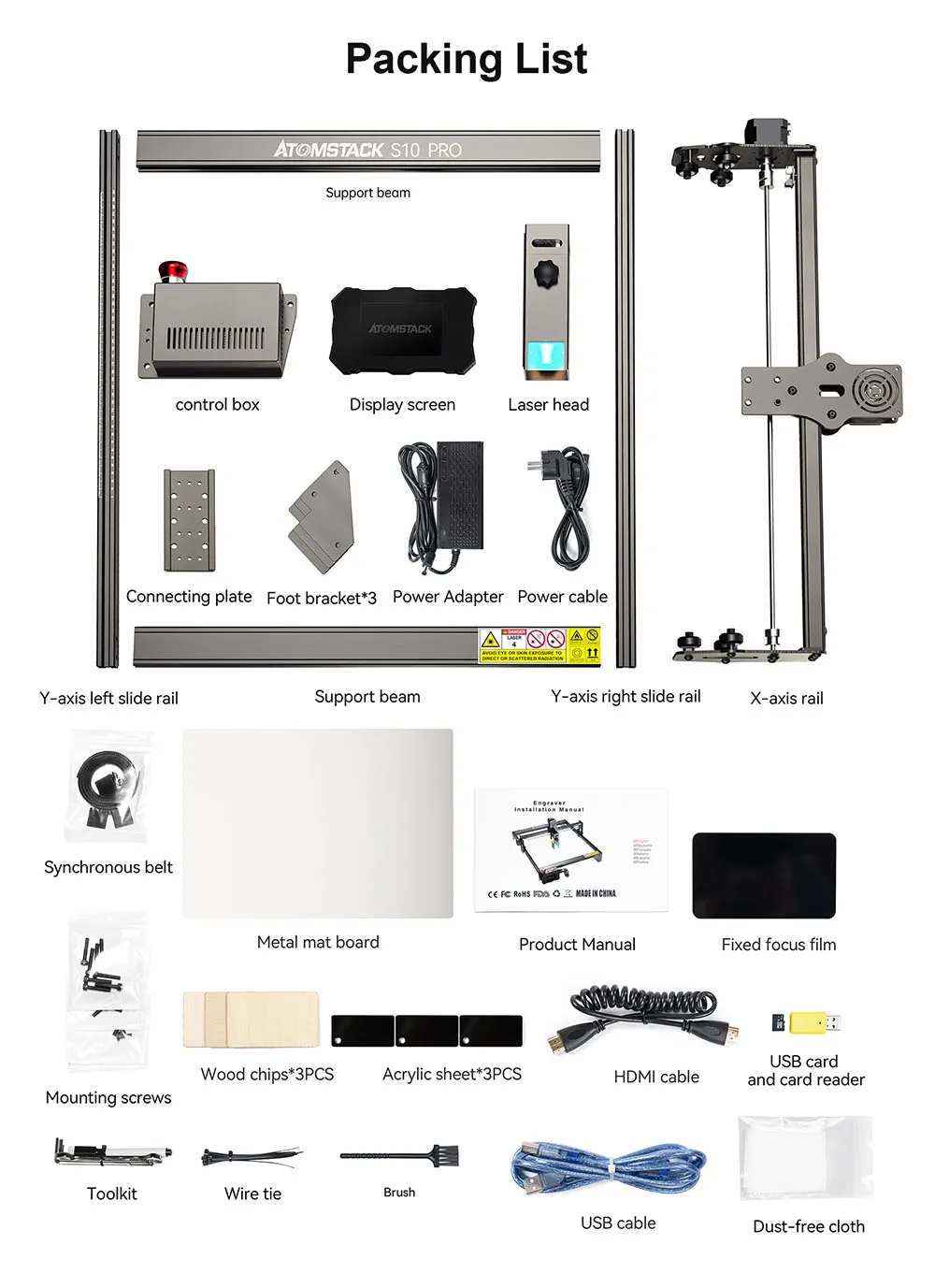

S10 PRO LASER ENGRAVER PACKAGE:

1 × mounting screw
10×Wire tie
1×power adapter
1×cutting pad
1×tool kit
1×desiccant
1×Instruction
1×X axis assembly
4×Foot pad foam
1×brush
1×data line
1×Y axis left profile
1×Film
1×Clean cloth
1×Touch screen components
1×Y axis right profile
3×Acrylic sheet
1×card reader
1×HDMI cable
1×Profile on the base
3 × wood chips
1×TF card
1×laser module
1×Under the base profile
3×foot bracket



Note:

●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.

● Please do not touch the laser emitter with your hand, or it may burn your hand.

● Please avoid strong impact on the machine.

● Children under 14 are not allowed to use this product and children over 14 need adult supervision.

● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
