Atomstack A5 M50 Pro 40W Laser Engraver CNC Laser Engraving Machine With Emergency Stop Button Support Offline Engraving Laser Output Power 5-5.5W

Brand:

Atomstack

$499.99

Atomstack A5 M50 Pro 40W Selling Point:

Panoramic glass of laser Engraver eliminates the inconvenience of wearing goggles,can protect your eyes and safer to use

Can easily cut 20mm thick wood, 15mm black acrylic; can directly engrave mirror stainless steel metal and ceramics

All-aluminum alloy anodized structure makes the laser engraving machine more durable

The upgraded fixed-focus laser module combines precision engraving and high-energy cutting at the same time, which is more stable than the zoom laser

The stepping motor and the screw are integrally formed, making the laser engraving more precise

Support offline engraving,you can work anytime and anywhere

Emergency stop button can stop at any time to prevent emergencies from happening

Local warehouse delivery, no customs duties.
Delivered within 2-4 Natural Days.

Product Option:

Color

Black

PLUG TYPE

US Plug

EU Plug

Frequently Bought Together (3)

Atomstack Air Assist Kit for Laser Engraver A5 PRO/A5 X7 PRO/S10 PRO/A10 PRO Low Noise and Easily Assembly Removing Smoke and Dust

Price: $89.99

View Addon »

Extension kit for Atomstack A10 Pro/S10 Pro/X7 Pro/A5 M50/A5 M50 Pro Laser Engraver 410*850mm Engraving Enlargement Size

Price: $89.99

View Addon »

Atomstack R3 Pro Automatic Y-axis Rotary Roller Engraving Module

Price: $109.99

View Addon »

Order Now:	Free Shipping
Price:	$499.99
Availability:	In Stock

Qty

Engraving area	410*400mm	Laser power	40W
Laser output power	5-5.5W	Wave Length	445 ± 5nm
Engraving accuracy	0.01mm	Focusing method	fixed focus laser, no need to focus
Laser protective cover	Protect the user's eyes and prevent pets from grabbing the laser spot	Operating software	LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system
Input Format	NC, BMP, JPG, PNG, DXF, etc	Data transmission method	USB connection
Input Voltage	AC100-240V, 50/60Hz	Output Voltage	DC12V, 5A
Equipment net weight	3.426kg	Package weight	5.072kg
Equipment size	570600270mm	Packing size	620345130mm
Certification	CE FCC RoHS FDA PSE	Engraving materials	wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;
Cutting material	cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather;

Engraving area

410*400mm

Laser power

40W

Laser output power

5-5.5W

Wave Length

445 ± 5nm

Engraving accuracy

0.01mm

Focusing method

fixed focus laser, no need to focus

Laser protective cover

Protect the user's eyes and prevent pets from grabbing the laser spot

Operating software

LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system

Input Format

NC, BMP, JPG, PNG, DXF, etc

Data transmission method

USB connection

Input Voltage

AC100-240V, 50/60Hz

Output Voltage

DC12V, 5A

Equipment net weight

3.426kg

Package weight

5.072kg

Equipment size

570*600*270mm

Packing size

620*345*130mm

Certification

CE FCC RoHS FDA PSE

Engraving materials

wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;

Cutting material

cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather;

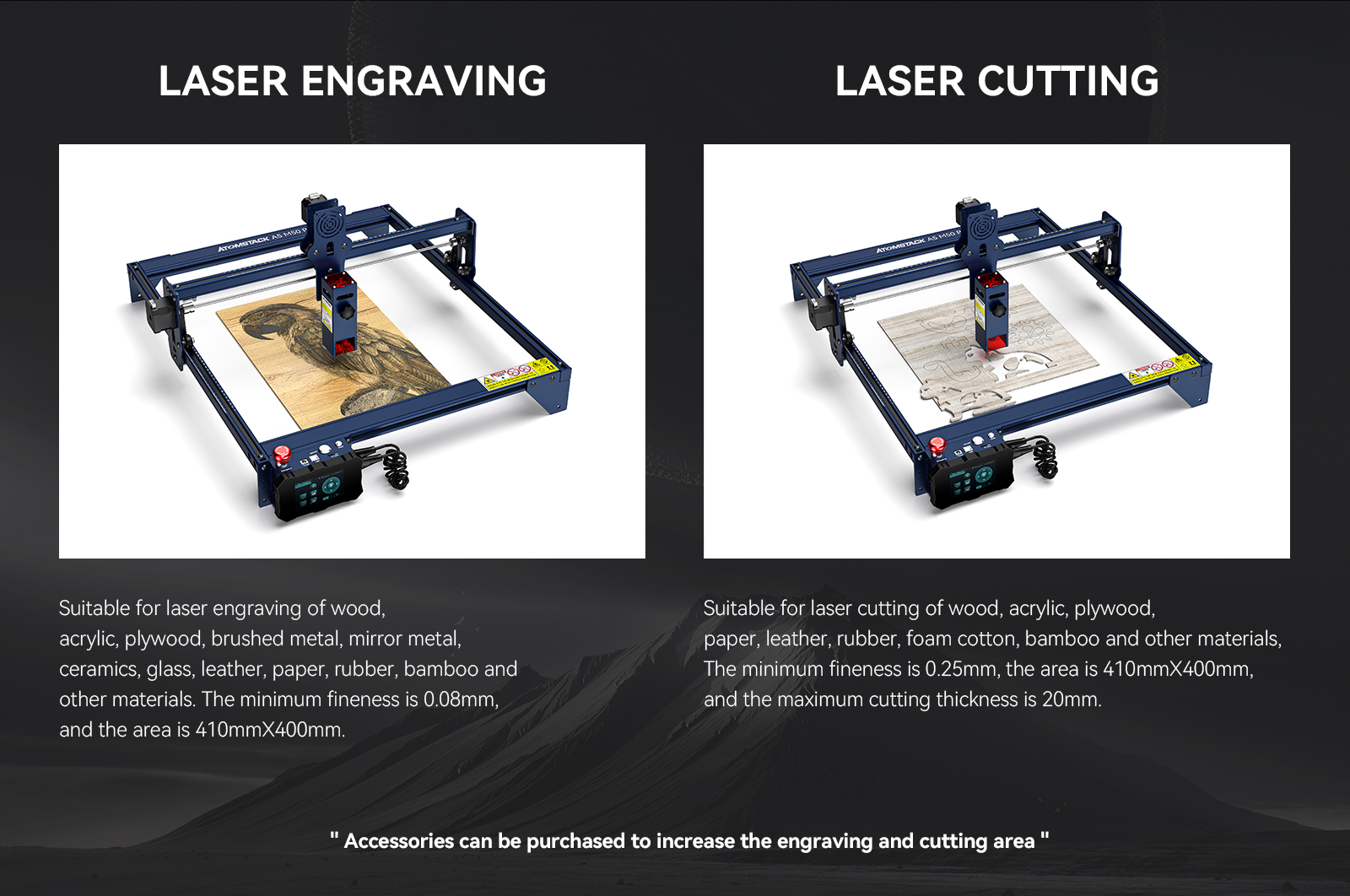

A5 M50 Pro Laser Engraving Machine Features:

Eye-protection flame-retardant filter panoramic glass: The flame-retardant filter panoramic glass can filter 97% of the ultraviolet light, which plays a very good role in protecting your eyes. You and the people around you do not need to wear goggles, you can also clearly Watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles. The glass is flame retardant and safer to use.

Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving; the new laser focal spot is 50% smaller than other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

Newly upgraded compression laser: Newly upgraded ultra-fine compression laser: The laser adopts 4-fold lens group collimation and focus technology, the optical power is 5-5.5W, and the laser focus area is reduced to 0.08*0.08mm. The high-density laser can easily cut 20mm thick wooden boards, 15mm black acrylic; can directly engrave mirror stainless steel metal and ceramics, and can achieve the effect of a 100W CO₂ laser engraving machine.

Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

New type laser with knob: It is more convenient and quick to adjust the height of the laser.

Support offline engraving: configure the terminal control panel, support offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.

The laser sintering temperature is up to 800~850℃.

Emergency stop button: If an unexpected situation occurs, stop the machine at any time, making the engraving safer.

Stopper: Yes.

Reset switch: Yes.

Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size.

Atomstack A5 M50 Pro 40W PACKAGE:

Mounting screw *1	Tool kit *1	Foot pad foam *4	Film *1
Acrylic sheet *3	Wood chips *3	Wire tie *10	Desiccant *1
Brush *1	Clean cloth *1	Card reader *1	TF card *1
Power adapter *1	Instruction *1	Data line *1	Touch screen components *1
HDMI cable *1	Laser module *1	Cutting pad *1	X axis assembly *1
Y axis left profile *1	Y axis right profile *1	Profile on the base *1	Under the base profile *1
Foot bracket *3
