Atomstack P7 M40 Eye Protection Laser Engraver Power Laser Cutting & Engraving Machine 200*200mm

Brand:

Atomstack

$249.99

Atomstack P7 M40 Laser Engraver Selling Points:
1.New laser with knob
2.Robust and easy-to-install structure design
3.Newly upgraded ultra-fine compression laser
4.Eye-protection flame-retardant filter panoramic glass
5.Upgraded version of high-performance fixed-focus laser

Local warehouse delivery, no customs duties.
Delivered within 2-4 Natural Days.

Product Option:

PLUG TYPE

US Plug

EU Plug

Frequently Bought Together (3)

Atomstack R3 Pro Automatic Y-axis Rotary Roller Engraving Module

Price: $109.99

View Addon »

Atomstack Air Assist Kit for Laser Engraver A5 PRO/A5 X7 PRO/S10 PRO/A10 PRO Low Noise and Easily Assembly Removing Smoke and Dust

Price: $89.99

View Addon »

F1 Laser Cutting Thicken Honeycomb Worktable With Fixtures Laser Cutter Honeycomb Bed Working Panel High-strength Steel 380*284*22mm

Price: $119.99

View Addon »

Order Now:	Free Shipping
Price:	$249.99
Availability:	In Stock

Qty

Atomstack P7 M40 Laser Engraving Machine Features:

Eye-protection flame-retardant filter panoramic glass: The flame-retardant filter panoramic glass can filter 97% of the ultraviolet light, which plays a very good role in protecting your eyes. You and the people around you do not need to wear goggles, you can also clearly Watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles. The glass is flame retardant and safer to use.

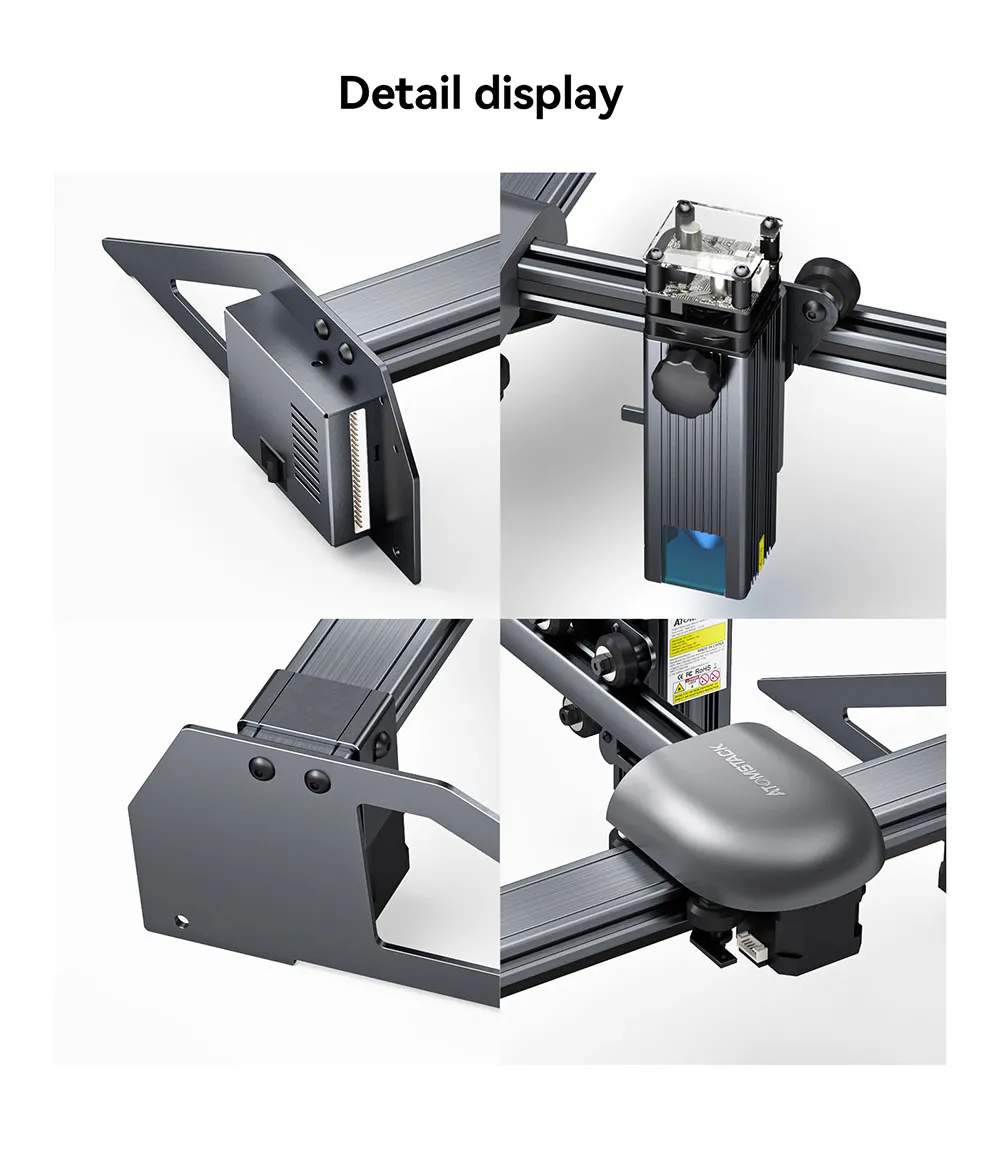

Robust and easy-to-install structure design: The all-aluminum alloy anodized structure design makes the machine more durable and improves the accuracy of engraving. The portable all-metal structure, 85% pre-assembly, can be installed in 5 minutes.

Upgraded version of high-performance fixed-focus laser: Engraving can be done without adjusting the focal length; the newly upgraded compressed spot increases the energy concentration by 200%, and the spot size is only 0.02mm², which can take into account both precision engraving and high-energy cutting. At the same time, the laser power of fixed-focus laser is more stable than that of zoom laser.

Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 200*200mm large area engraving interval can meet your various engraving needs.

Newly upgraded ultra-fine compression laser: the laser adopts 4-fold lens group collimation and focus technology, the optical power is 4.5~5.5W, the laser focus area is reduced to 0.02mm², the high-density laser can easily cut 10mm thick wood boards and 6-8mm black acrylic ; Can directly engrave mirror stainless steel metal and ceramics.

Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

New laser with knob: It is more convenient and quick to adjust the height of the laser.

Colorful gift box packaging: more beautiful and more convenient to give gifts.

P7 M40 Laser Cutter Description:

Item model number: ATOMSTACK P7 M40

Print Size: Recommend Print Size 200*200mm

Engraving materials: wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;

Cutting material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather;

Laser power: 40W

Laser output power: 4.5-5.5W

Wave Length: 445 ± 5nm

Engraving accuracy: 0.01mm

Focusing method: fixed focus laser, no need to focus

Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.

Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.

Input Format: NC, BMP, JPG, PNG, DXF, etc.

Data transmission method: USB connection.

Input Voltage: AC100-240V, 50/60Hz

Output Voltage: DC12V, 5A

Certification: CE FCC RoHS FDA PSE

P7 M40 PACKAGE:

Assembly block *4	Open wrench*1	Hexagonal Wrench*2	Lower support foot*1
Laser*1	Y-axis belt assembly*1	Wood chips*3	Upper support foot*1
Laser slide*1	Marker *1	Fixed focus film*1	Control box*1
Foot pad foam*4	Cable tie*5	Acrylic sheet*3	X axis assembly*1
USB cable*1	Screw*4	Cutting pad *1	Y axis assembly*1
Power adapter*1	Power cord*1
