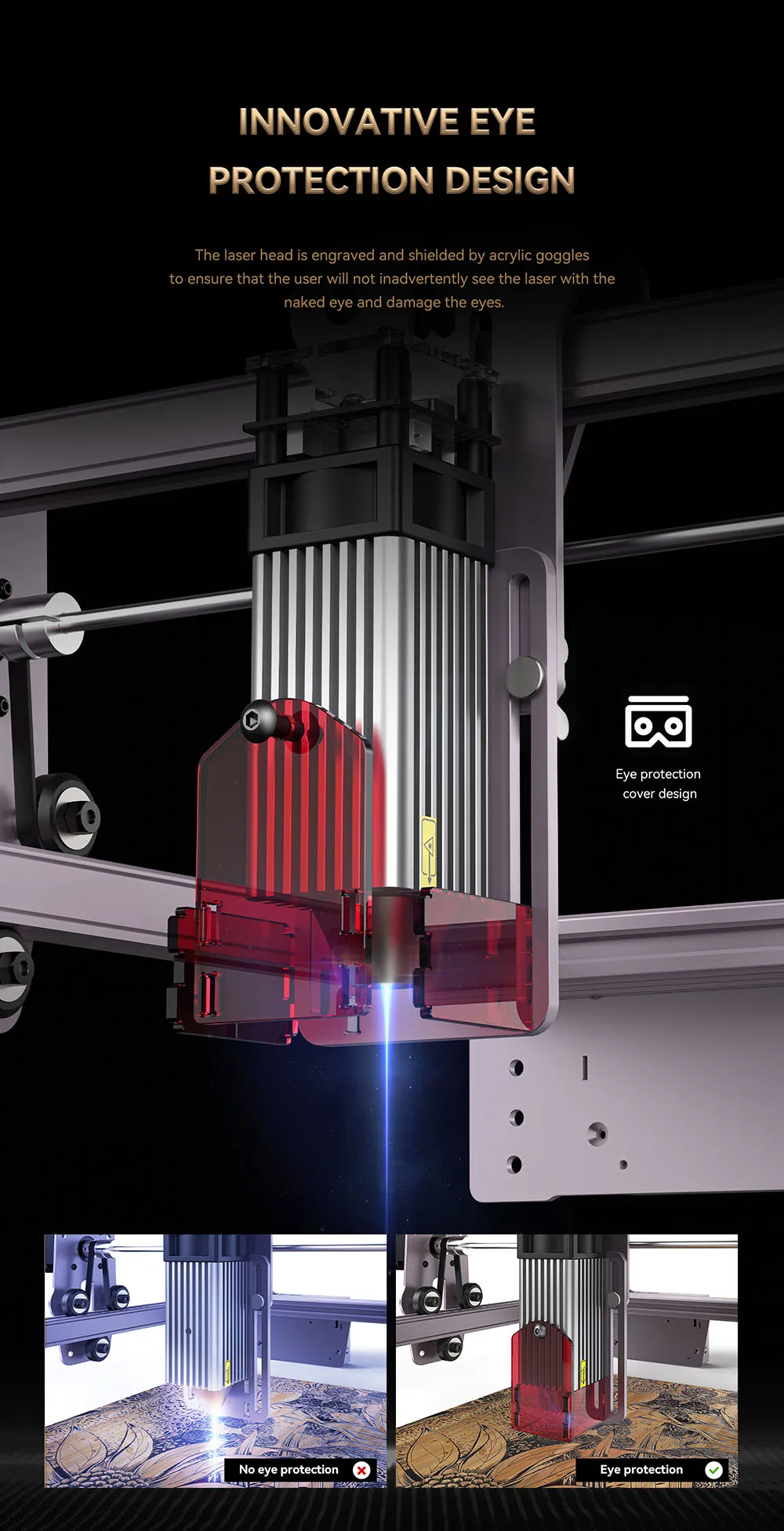

1.New eye protection design:The laser protective cover perfectly protect your eyes,filter UV light for 97%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.
2.Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
3.Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving; the new laser focal spot is 50% smaller than other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
4.Wide compatibility:The atomstack machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
5.Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

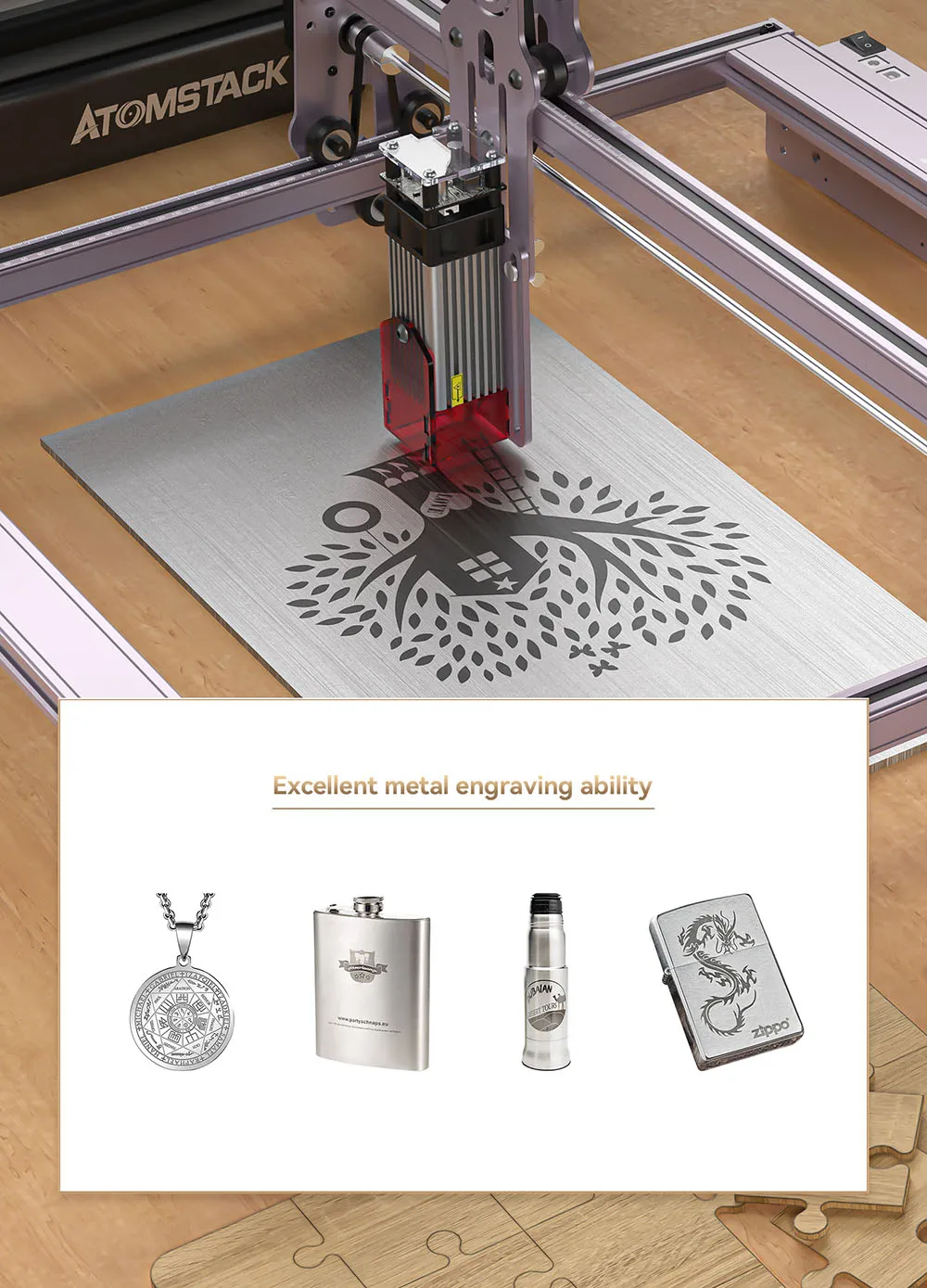

6.Newly upgraded compression laser: Newly upgraded ultra-fine compression laser: The laser adopts 4-folded lens group collimation and focus technology, the optical power is 5-5.5W, the laser focus area is reduced to 0.06*0.06mm, and the high-density laser can easily cut 15mm thick wood boards , 12mm black acrylic; can directly engrave mirror stainless steel metal, ceramics, and can achieve the effect of a 100W CO₂ laser engraver.
7.Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.
8. Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size
A5 PRO+ 40W Description:
Item model number: ATOMSTACK A5 PRO+
Print Size: Recommend Print Size 410*400mm
Carving materials: wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;
Cutting material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather;
Laser power: 40W
Laser output power: 5-5.5W
Wave Length: 445 ± 5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, no need to focus
Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data transmission method: USB connection.
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Equipment net weight: 3.426kg
Package weight: 5.072kg
Equipment size: 570*600*270mm
Packing size: 620*345*130mm
Certification: CE FCC RoHS FDA
A5 PRO+ LASER ENGRAVER PACKAGE:
|1 x X-axis assembly||2×Section 57CM||2×Section 48CM||1 x control box|
|3 x support legs||1×Goggles||1 x laser||1×24V2A power adapter|
|1 x Power switch line||1 x USB cable||Step 1~5 installation package||1×M5 wrench|
|10×rolled belt||3 x small wood||1×focal length film||1×M3 wrench|
|1 x marker||1 x brush||3×small acrylic||1×Stainless steel backing plate for cutting|
●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
