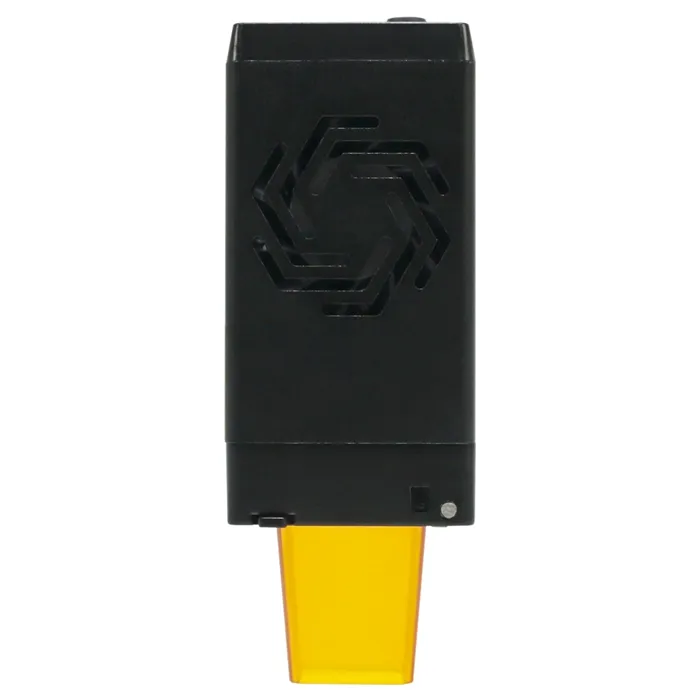

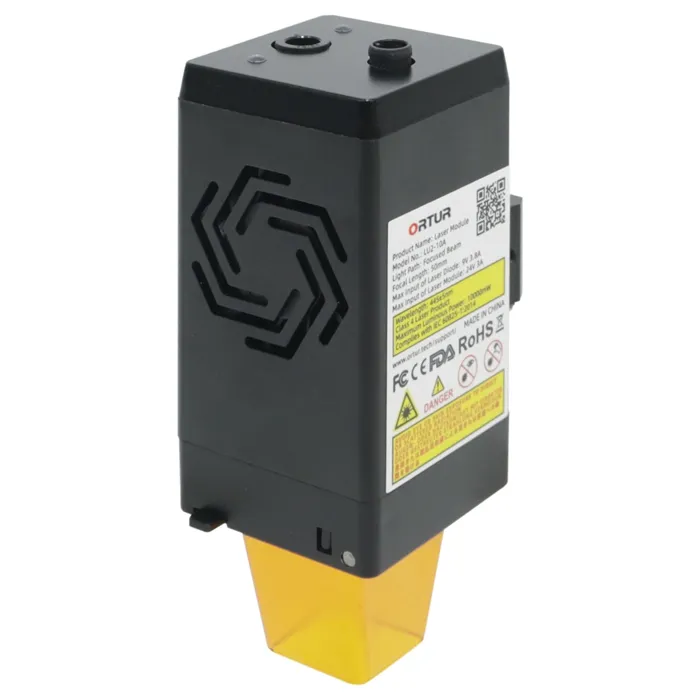

Ortur LU2-10A Laser Module 10W for Ortur & Aufero Laser Engraving Cutting Machine

Brand:

$415.00
Ortur Laser Module 10W Selling Points:
  • Brilliant performance - Upgraded high performance fixed focus laser head
  • High speed and more stable - Laser cutting module with compression laser technology, laser focus is about 0.12*0.15mm
  • Safe protection design - the laser module shield filters 97% of uv rays, enables engraving without glasses
  • Widely Compatible - The laser head is ideal for engraving and cutting wood, bamboo, cardboard, leather, glass, metal and more. Can cut pine board, non-woven fabric and acrylic etc.
  • Engraving speed increased to up to 15,000mm/min.
  • Frequently Bought Together (3)
    Price: $749.99 $599.99
    Price: $799.99 $739.99
    Price: $399.99
    Price: $415.00
    Availability: In Stock
    Order Now: Free Shipping
    Qty
    Description
    lu2 10a laser
    More Precise Cutting & Engraving
    The 4th beam combining technology with double compression spots
    ortur lu2 10a
    Engraving Speed up to 15,000mm/min
    Light body only 235g
    For engraving same pattern, the speed of 5W laser module
    can only be 10,000mm/min, but for 10w laser module
    it can reach to 15,000mm/min and only comsume 80% power

    ortur lu2 10a review
    Stable & Lighter 10W Laser Module
    Dual-compression diode technology The optimized cooling system ensures the stability of the laser modile for long-term operation, No power off due to overheat

    ortur lu2 10a module

    12mm Wood Cutting in One-PASS
    10w lu2 10a

    12mm Acrylic Cutting in One-PASS

    ortur laser module

    Pine Board, Maximum Cutting Thickness 20mm
    ortur 10watt laser

    Acrylic Sheet, Maximum Cutting Thickness 30mm

    ortur lu2 10a laser module
    Air Assist
    The 10W laser module has a built -in air-assist interface, which is easy to install and simple to use.
    ortur 10w laser module
    Higher Precision
    The improved mechanical structure focal spot 0.05x0.1mm, Bring delicate details at 0.01mm

    Specification

    BrandOrturType
    Laser Module
    Model
    LU2-10A 24V 10W
    Electric Current
    1.1-1.35A
    Optical Power
    10W
    Wavelength
    445±10 nm
    Focal Spot
    0.07x 0.06 mm
    Voltage
    24V
    Light Path
    Focused Beam
    Weight & Size Product Weight
    10.3 ounces
    Focal Length
    50 mm
    Product Size(L x W x H)
    8.66 x 3.14 x 3.14 inches

    1. Luminous power: LU2-10A 24V 10W laser module, real luminous power 10W, focus 0.07 × 0.06mm;, With smaller luminous cavity and smaller focus, the laser head is very suitable for carving high-precision patterns

    2. Default focal length: the default focal length of the laser module is 50 mm; The safe engraving distance allows you not to worry about the hidden danger of laser

    3. High precision: high-precision control of laser beam, more stable and continuous output power; Long service life up to 8000 hours

    4. Laser shield protection: laser shield protection can effectively reduce the damage to eyes caused by laser; Tips: Don't stare at the laser for a long time, or it will cause irreversible damage

    5. Fast heat dissipation: aluminum shell and radiator are used for fast heat dissipation, so that the machine will not overheat when running for a long time

    6. Support air assist - (purchased separately) Provide your laser engraving machine or laser cutting machine with air assist system to improve laser power and efficiency. The air assisted nozzle adjusts the laser beam more accurately. The air flow of the air pump helps reduce the heat generated by the engraving machine, and they combine to provide you with a clean burning and cutting surface.


    Package Contents:

    OUC Universal Adapter Board x1
    24V 2A Power Adapter x1
    Dedicated Laser Wire x1
    Air Assist x1
    Air Pipe ( OD:6mm ID:4mm )x1
    Slider x1
    New Copling x1
    Laser Module Fixing Plate x1
    LU2-10A Laser Module x1
    Thumb Screws x2
    Air Flow Regulator x1
    Pipe Connector x1
    Laser Backboard x1
    Support Block x1
    Cable Tiex10
    M3x5mm Screws (Used for Slider) x4
    M3x8mm Screws (Used for OLM2S2) x4
    M3x 12mm Screws(Used for OLM2) x4
    M3x12mm Screws x4
    M5x6mm Screws x2
    M3x6mm Screws x2
    M5 Nuts x2
    M5 Spacers x2
    User Manual*1
    User Manual*1
